Upgrading Microsoft Office Sharepoint Server (MOSS) 2007 to Sharepoint 2010 BETA – Part 1

Posted in: Blog, SharePoint 2010 | Jan 10, 2013 at 9:28 PM

No comments

Yo everyone,

I now want to upgrade my MOSS 2007 instance with Sharepoint 2010 BETA. I of course do it on a VM 🙂 Within my MOSS 2007 instance I’ve got the following running:

– Custom site template of CompleteSharepoint.NET (Content Management System Built on-top-of Windows Sharepoint Services 3.0)

– Custom field types and field controls

– Custom feature receivers

– Custom ASP.NET controls

– Custom Site Actions menu

– Custom content types and columns

– Custom administration pages

– Custom master pages and page layouts

– Custom list template and list instance

– Gary Lapointe’s custom STSADM commands

– Central Admin runs at http://machine:9000/

– SSP runs at http://machine:9001/

– MySites runs at http://machine:9002/

– My MOSS 2007 farm is NOT RUNNING ON ACTIVE DIRECTORY! The users are pulled out from local machine.

SQL Server is also running from the same VM as MOSS 2007.

So…here it is….I’ll paste some screenshots as I go through.

BEFORE: Solutions

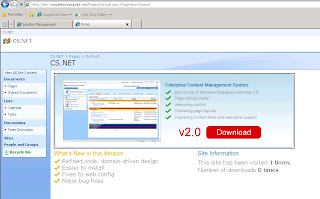

BEFORE: Sharepoint site as it stands

BEFORE: Extracting SP2010 Beta executables

I then installed all the pre-requisites as per my article:

http://sp2010journal.blogspot.com/2010/01/installing-sharepoint-2010.html

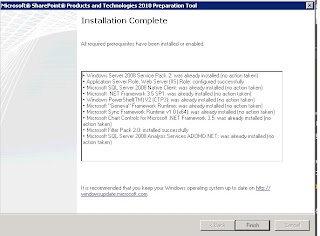

Pre-requisites installed OK

That’s what it said before installing….

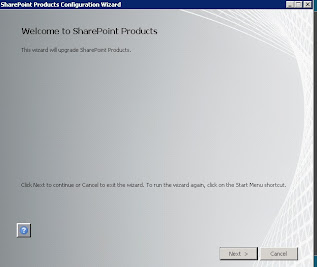

Installed successfully..now it runs the configuration wizard

Clicking Next before went straight to this screen

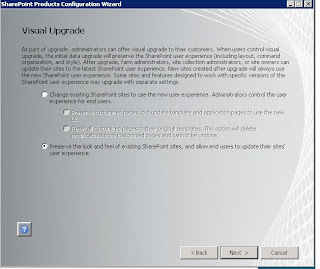

WOW..new screen…I choose to preserve the look and feel

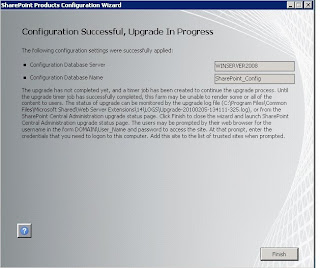

EXCITING…EXCITING…

Opening Central Admin…and…BANG….ERROR

OK let me fixed that.

That’s the reason why it broke

So then I removed that line from Central Admin’s web.config and:

Still breaks…fine…I’ll fix that

I change the navigation provider to: CurrentNavSiteMapProvider and………

VOILA!!!

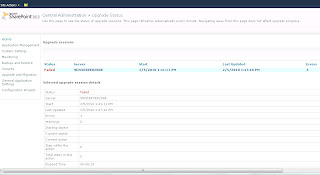

I said I had 3 errors. When I opened the log file mentioned at the bottom of the screen I could see errors related to User Profile. It might be caused by my MOSS 2007 wasn’t running on AD?

—

[OWSTIMER] [UserProfileSharedResourceProvider12Sequence] [ERROR] [2/5/2010 1:47:40 PM]: Action 14.0.1.0 of Microsoft.Office.Server.Upgrade.UserProfileSharedResourceProvider12Sequence failed.

[OWSTIMER] [UserProfileSharedResourceProvider12Sequence] [ERROR] [2/5/2010 1:47:40 PM]: Inner Exception: There are no online service instances for this application.

[OWSTIMER] [UserProfileSharedResourceProvider12Sequence] [ERROR] [2/5/2010 1:47:40 PM]: at Microsoft.SharePoint.SPConnectedServiceApplication.get_ApplicationAddresses()

at Microsoft.SharePoint.SPServiceLoadBalancer.<get_endpointaddresses>d__0.MoveNext()

at Microsoft.SharePoint.SPRoundRobinServiceLoadBalancer.GetEndpoints(IEnumerable`1 applicationAddresses)

at Microsoft.SharePoint.SPRoundRobinServiceLoadBalancer.BeginOperation()

at Microsoft.Office.Server.UserProfiles.MossClientBase`1.get_Channel()

at Microsoft.Office.Server.UserProfiles.MossClientBase`1.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

atMicrosoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

[OWSTIMER] [UserProfileSharedResourceProvider12Sequence] [ERROR] [2/5/2010 1:47:40 PM]: Exception: There are no online service instances for this application.

[OWSTIMER] [UserProfileSharedResourceProvider12Sequence] [ERROR] [2/5/2010 1:47:40 PM]: at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.GetProfileProperties()

at

Microsoft.Office.Server.Administration.UserProfileApplicationProxy.RefreshProperties(Guid applicationID)at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValueNow(K key)

at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValue(K key, Boolean asynchronous)

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.InitializePropertyCache()

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.Provision()
at Microsoft.Office.Server.Upgrade.ExtractUserProfileApplication.Upgrade()

at Microsoft.SharePoint.Upgrade.SPActionSequence.Upgrade()

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: Begin Rollback()

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: End Rollback()

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: Begin Dispose()

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: End Dispose()

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: SQL Query Count=998

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: SPRequest Objects=0

[OWSTIMER] [ExtractUserProfileApplication (14.0.1.0)] [DEBUG] [2/5/2010 1:47:40 PM]: Execution Time=48390.3856495728

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: Upgrade [SharedResourceProvider12 Name=Default SSP] failed.

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: Inner Exception: There are no online service instances for this application.

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.GetProfileProperties()

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.RefreshProperties(Guid applicationID)

at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValueNow(K key)

at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValue(K key, Boolean asynchronous)

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.InitializePropertyCache()

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.Provision()

at Microsoft.Office.Server.Upgrade.ExtractUserProfileApplication.Upgrade()

at Microsoft.SharePoint.Upgrade.SPActionSequence.Upgrade()

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: Exception: Action 14.0.1.0 of Microsoft.Office.Server.Upgrade.UserProfileSharedResourceProvider12Sequence failed.

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: at Microsoft.SharePoint.Upgrade.SPActionSequence.Upgrade()

at Microsoft.SharePoint.Upgrade.SPUpgradeSession.Upgrade(Object o, Boolean bRecurse)

[OWSTIMER] [SPUpgradeSession] [DEBUG] [2/5/2010 1:47:40 PM]: Elapsed time upgrading [SharedResourceProvider12 Name=Default SSP]: 00:01:05.

[OWSTIMER] [SPManager] [INFO] [2/5/2010 1:47:40 PM]: Resetting the status of PersistedUpgradableObject: SharedResourceProvider12 Name=Default SSP to Online.

[OWSTIMER] [SPUpgradeSession] [ERROR] [2/5/2010 1:47:40 PM]: Upgrade Timer job is exiting due to exception: Microsoft.SharePoint.Upgrade.SPUpgradeException: Action 14.0.1.0 of Microsoft.Office.Server.Upgrade.UserProfileSharedResourceProvider12Sequence failed. —&gt; Microsoft.Office.Server.UserProfiles.UserProfileException: There are no online service instances for this application. —&gt; Microsoft.SharePoint.SPException: There are no online service instances for this application.

at Microsoft.SharePoint.SPConnectedServiceApplication.get_ApplicationAddresses()

at Microsoft.SharePoint.SPServiceLoadBalancer.<get_endpointaddresses>d__0.MoveNext()

at Microsoft.SharePoint.SPRoundRobinServiceLoadBalancer.GetEndpoints(IEnumerable`1 applicationAddresses)

at Microsoft.SharePoint.SPRoundRobinServiceLoadBalancer.BeginOperation()

at Microsoft.Office.Server.UserProfiles.MossClientBase`1.get_Channel()

at Microsoft.Office.Server.UserProfiles.MossClientBase`1.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

— End of inner exception stack trace —

at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.ExecuteOnChannel(String operationName, CodeBlock codeBlock)

at Microsoft.Office.Server.UserProfiles.ProfilePropertyServiceClient.GetProfileProperties()

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.RefreshProperties(Guid applicationID)

at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValueNow(K key)

at Microsoft.Office.Server.Utilities.SPAsyncCache`2.GetValue(K key, Boolean asynchronous)

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.InitializePropertyCache()

at Microsoft.Office.Server.Administration.UserProfileApplicationProxy.Provision()

at Microsoft.Office.Server.Upgrade.ExtractUserProfileApplication.Upgrade()

at Microsoft.SharePoint.Upgrade.SPActionSequence.Upgrade()

— End of inner exception stack trace —

at Microsoft.SharePoint.Upgrade.SPActionSequence.Upgrade()

at Microsoft.SharePoint.Upgrade.SPUpgradeSession.Upgrade(Object o, Boolean bRecurse)

at Microsoft.SharePoint.Administration.SPPersistedUpgradableObject.Upgrade(Boolean recursively)

at Microsoft.SharePoint.Upgrade.SPUpgradeSession.ReflexiveUpgrade(Object o, Boolean bRecurse)

at Microsoft.SharePoint.Upgrade.SPUpgradeSession.Upgrade(Object o, Boolean bRecurse)

at Microsoft.SharePoint.Administration.SPUpgradeJobDefinition.Execute(Guid targetInstanceId)–

Well, let’s open the CompleteSharepoint.NET site now, shall we? 🙂

I get web.config error. Well..let me fix that then.

I commented out that line and I then get the same SPUrl error as before. So I removed the SPUrl line as well and…..

Error…

After trialling and error, I found out that it has something to do with MOSS 2007 HTTPModule. It’s this particular one:

I then commented that out and I got different error:

Fine I can fix that. It’s actually the lines below:

&lt;add verb=”GET,HEAD,POST” path=”*” type=”Microsoft.SharePoint.ApplicationRuntime.SPHttpHandler, Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c” /&gt;

&lt;add verb=”OPTIONS,PROPFIND,PUT,LOCK,UNLOCK,MOVE,COPY,GETLIB,PROPPATCH,MKCOL,DELETE,(GETSOURCE),(HEADSOURCE),(POSTSOURCE)” path=”*” type=”Microsoft.SharePoint.ApplicationRuntime.SPHttpHandler, Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c” /&gt;

It seems that Sharepoint 2010 is not using tag any more. It uses the following instead:

&lt;modules runAllManagedModulesForAllRequests=”true”&gt;
&lt;remove name=”AnonymousIdentification” /&gt;
&lt;remove name=”FileAuthorization” /&gt;
&lt;remove name=”Profile” /&gt;
&lt;remove name=”WebDAVModule” /&gt;
&lt;add name=”SPRequestModule” preCondition=”integratedMode” type=”Microsoft.SharePoint.ApplicationRuntime.SPRequestModule, Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c” /&gt;
&lt;add name=”ScriptModule” preCondition=”integratedMode” type=”System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35″ /&gt;
&lt;add name=”SharePoint14Module” preCondition=”integratedMode” /&gt;
&lt;add name=”StateServiceModule” type=”Microsoft.Office.Server.Administration.StateModule, Microsoft.Office.Server, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c” /&gt;
&lt;add name=”PublishingHttpModule” type=”Microsoft.SharePoint.Publishing.PublishingHttpModule, Microsoft.SharePoint.Publishing, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c” /&gt;
&lt;add name=”PublishingPageUrlHandlerModule” type=”CompleteSharepoint.NET.Web.PublishingPageUrlHandlerModule,CompleteSharepoint.NET.Web, Version=1.0.0.0, Culture=neutral, PublicKeyToken=9911d32a5d039082″ /&gt;


&lt;/modules&gt;

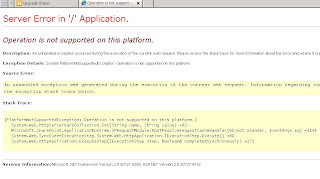

Anyway, it still failed. It now displayed the following:

I tried to hijack to go to /_layouts/settings.aspx and it still failed.

However, if I create a new site collection using my custom CompleteSharepoint.NET site template, IT WORKS! WOOOHOO!! So my CS.NET is working on SP2010! 🙂

See below:

Conclusion
I still can’t get upgrade working. But I’ll keep trying and let you know if it ever succeeded. I think the database couldn’t somehow be upgraded successfully.

Cheers,
Tommy
